Charles C. Wade

This paper introduces open-source contributions designed to accelerate research in volumetric multi-material additive manufacturing and metamaterial design. We present a flexible Python-based API facilitating parametric expression of multi-material gradients, integration with external libraries, multi-material lattice structure design, and interoperability with finite element modeling. Novel implicit multi-material modeling techniques enable detailed spatial grading at multiple scales within lattice structures. Additionally, our framework integrates with finite element analysis, offering predictive simulations via adaptive mesh sizing and direct import of simulation results to guide material distributions. Practical case studies illustrate the utility of these contributions, including functionally graded lattices, algorithmically generated structures, and simulation-informed designs, exemplified by a multi-material bicycle seat optimized for mechanical performance and rider comfort. Finally, we introduce a mesh export strategy compatible with standard slicing software, significantly broadening the accessibility and adoption of functionality graded computational design methodologies for multi-material fabrication.

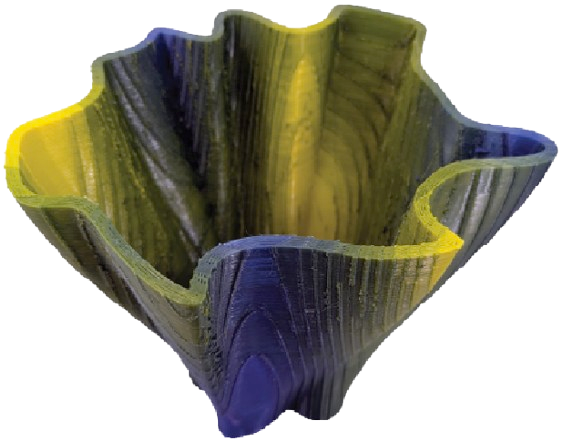

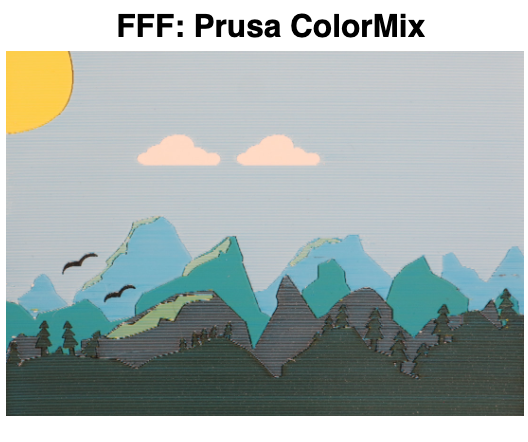

This paper presents a novel gradient-informed slicing method for functionally graded additive manufacturing (FGM) that overcomes the limitations of conventional toolpath planning approaches, which struggle to produce truly continuous gradients. By integrating multi-material gradients into the toolpath generation process, our method enables the fabrication of FGMs with complex gradients that vary seamlessly in any direction. We leverage OpenVCAD’s implicit representation of geometry and material fields to directly extract iso-contours, enabling accurate, controlled gradient toolpaths. Two novel strategies are introduced to integrate these gradients into the toolpath planning process. The first strategy maintains traditional perimeter, skin, and infill structures subdivided by mixture ratios, with automated ’zippering’ to mitigate stress concentrations. The second strategy fills iso-contoured regions densely, printing directly against gradients to eliminate purging and reduce waste. Both strategies accommodate gradually changing printing parameters, such as mixed filament ratios, toolhead switching, and variable nozzle temperatures for foaming materials. This capability allows for controlled variation of composition, density, and other properties within a single build, expanding the design space for functionally graded parts. Experimental results demonstrate the fabrication of high-quality FGMs with complex, multi-axis gradients, highlighting the versatility of our method. We showcase the successful implementation of both strategies on a range of geometries and material combinations, demonstrating the potential of our approach to produce intricate and functional FGMs. This work provides a robust, open-source, and automated framework for designing and fabricating advanced FGMs, accelerating research in multi-material additive manufacturing.

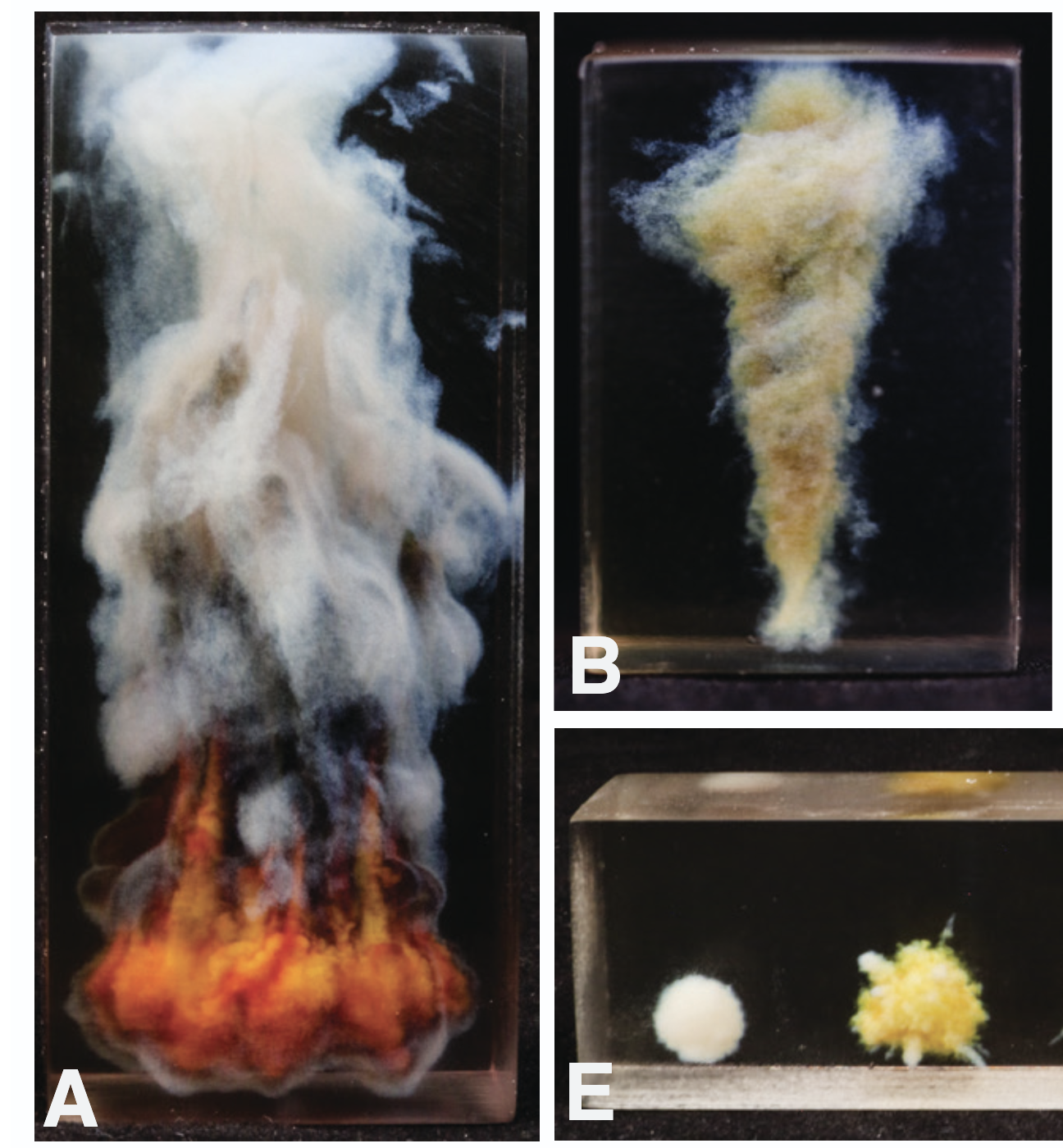

Modern additive manufacturing has made significant advancements in multi-material fabrication techniques that allow for position-specific control of material deposition. With these advancements, design tools have fallen behind machine capabilities in specifying volumetric information. Traditionally, design and fabrication workflows have expressed multi-material objects as several single-material bodies. By storing only the information about the surfaces of the geometries, information about the volumetric composition of the solids is unrepresented. The intense interest in compliant mechanisms and meta-materials demands a new design method that can support architecting material distribution throughout an object. To address these needs, we present OpenVCAD, an open-source volumetric design compiler with multi-material capabilities. OpenVCAD provides a scriptable suite of geometric and material design methods that enable efficient representation of object with complex geometry and material distributions. OpenVCAD allows functional specification of multi-material volumes that are parameterized on spatial locations, yielding complex multi-material distributions that would be impossible to describe using alternative methods. This paper will present the OpenVCAD pipeline, compare it to related work, and demonstrate its use through the design and manufacturing of functionally graded multi-material components.

In fused filament fabrication (FFF), the orientation of a part within the printer volume can dramatically affect print quality and probability of success. An object’s orientation determines how much support structure will be required and the strength of adhesion between the deposited material and the build surface. Selecting a part’s orientation is a non-trivial problem that users of FFF slicing software face routinely. Numerous part orientations need to be considered to find the best according to the results of the slicing process. This paper presents a method to automatically determine an optimal printing orientation for FFF that maximizes build-surface adhesion while minimizing the need for support structure. The algorithm considers the slicing angle and a configurable angle for overhang that requires supporting structure. By employing GPU acceleration and convex hull analysis to limit candidate orientations, the algorithm can run in real time as a preprocessing aid to users slicing parts.
